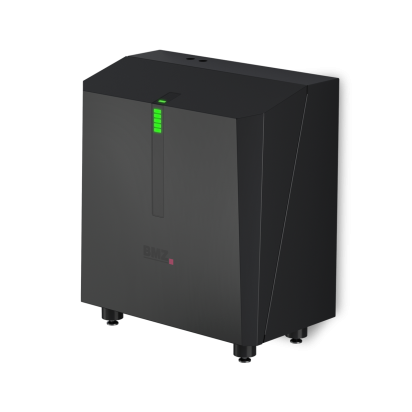

BMZ HYPERION LONGLIFE 20 Outdoor
SECURE - ROBUST - MODULAR - EXPANDABLE
20-year service life - up to 20 kWh - Made in Germany
HYPERION LONGLIFE 20 Outdoor: Robust and durable high-voltage lithium-ion storage system for outdoor use
Quality - made in Germany
The HYPERION LONGLIFE 20 Outdoor from BMZ Group is a high-voltage lithium-ion storage system specially developed for self-sufficient energy supply in outdoor areas. With a service life of 20 years, a weatherproof construction and its futuristic yet timeless dark design, it is not only a technical highlight for any installation, but also a visual one.
Main features:
-
Longevity: Up to 20 kWh, 20-year service life and over 10,000 charging cycles.
-
Weatherproof construction: Robust metal housing with IP65 protection rating for safe outdoor use.
-
Design: Futuristic, timeless dark design - modern, elegant and durable.
-
Security: 2-channel security architecture, independently confirmed.
-
Easy installation: Setup in less than 30 minutes, each module weighs less than 28 kg and can be installed by one person.
-
Flexibility: Up to 20 kWh, modularly expandable.
-
Emergency power supply: Blackstart-capable for emergency power and stand-alone operation.
-
Efficient and reliable: Passive cooling ensures low-maintenance operation.
-
Optimal combination: Perfectly matched to the BMZ POWER2GRID battery inverter for maximum performance and efficiency.
The HYPERION LONGLIFE 20 Outdoor is compatible with a wide range of inverters - it works particularly efficiently in combination with the BMZ POWER2GRID battery inverter. Thanks to its robust, weatherproof construction and modern design, it is the perfect solution for a reliable and future-oriented outdoor energy supply.
Discover the benefits of the HYPERION LONGLIFE 20 Outdoor and invest in a sustainable, independent and weather-independent energy future.
Price applies to the HYPERION LONGLIFE 20 Outdoor. Only while stocks last.
Emergency or backup power operation only with emergency or backup power-capable inverters. For details on the functions and requirements, please contact the inverter manufacturer.
Technical features and performance - HYPERION LONGLIFE 20 Outdoor
The BMZ HYPERION LONGLIFE 20 Outdoor is a powerful and weatherproof high-voltage lithium-ion storage system, ideal for self-sufficient energy supply in outdoor areas.
Capacity and energy
-
Module size: 6 modules
-
Energy (nominal/usable): 20.1 kWh / 12.6 kWh
-
Nominal voltage: 307 V
-
Capacity: 66 Ah
Power capability
-
Maximum discharge power: 9.2 kW
-
Discharge current (nominal): 30 A
-
Peak discharge current (3s): 40 A
-
Charging current: 29 A
-
Cycle stability: up to 10.000 cycles
Compact and efficient
-
Single module: only 22 kg with compact dimensions (546 × 217 × 155 mm)
-
Total system (6 modules): 751 × 870 × 423 mm, 41 kg housing weight
-
Modularly expandable up to 20,1 kWh
-
Passive cooling for quiet and efficient operation
Weatherproof reliability
-
Protection class IP54 - for safe outdoor use
-
Operating temperature: -20 to +60 °C (discharging), 0 to 45 °C (charging)
-
Rugged metal housing in futuristic, timeless dark design
Safety and compatibility
-
Safety architecture: 2-channel system, independently confirmed
-
Certifications: IEC62619, CE, UN38.3
-
Compatibility:
-
BMZ POWER2GRID battery inverter (optimally matched)
-
SMA, Goodwe, SOFARSOLAR, Solis
-
Kostal (RS-485, activation code required)
-
Optional Ethernet for internet connection
-
Easy installation
-
Each part weighs less than 28 kg - can be installed by one person
-
Assembly of the battery system in less than 30 minutes
