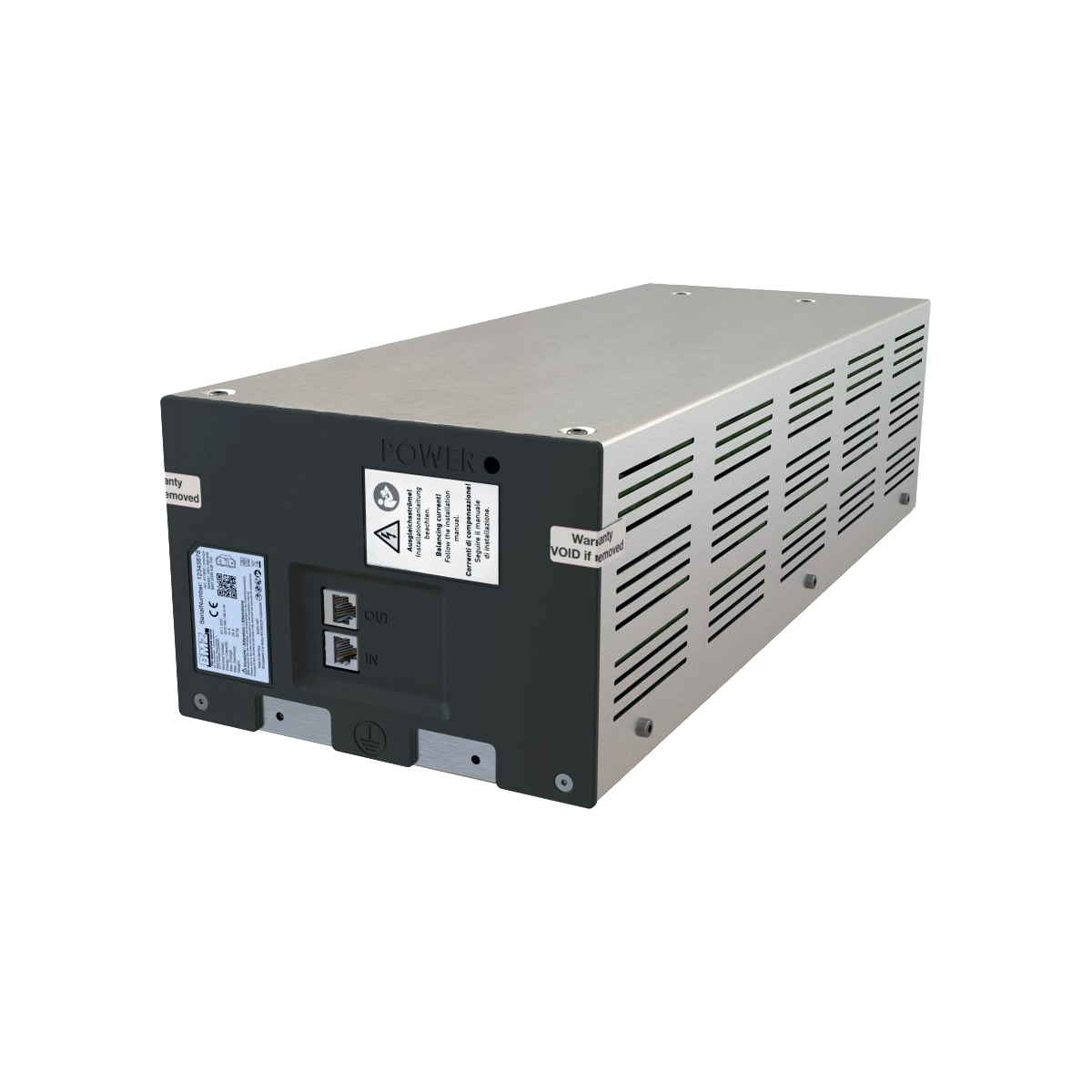

Helios Power battery module
Capacity 48.7 Ah, energy content 2.50 kWh, nominal voltage 51.8V
Intelligent power battery extension for the new Hyperion high-voltage storage system, which consists of a module with a total usable capacity of 2.5 kWh. Simple and reliable installation as well as future expansion of the storage system. Naturally "Made in Germany". The Helios module is ready for multiple connections, has an impressively long service life, is very light and compact. For more information on the Helios battery module, see data sheet in the download area.
Art.No. 612033 (for HYPERION storage system SE)
Important when ordering: At least 3 Helios modules must be ordered for the Hyperion SE high-voltage storage system!
Features and benefits:
- Convincing energy power
- More power
- High performance
- Lightweight
- Fast charging
- Very low self-discharge
- No maintenance costs, NO water required
- No toxic / explosive exhaust gases
- Safety: BMS, CID, safety venting
- Maintenance-free
- High service life
- Environmentally friendly
BMS INCLUDED
- Short-circuit protection
- Overcharge protection
- Temperature control
- Cell balancing (passive)
- 2. Protection (SCP)
- CAN bus
- Battery extension for high-voltage memory Hyperion
- Made in Germany
- 1x Helios battery module
Suitable for:
- HYPERION SE home storage
| Weight in kilograms (kg) | 22 kg |
|---|---|
| Width in millimetres (mm) | 546,1 mm |
| Height in millimetres (mm) | 216,8 mm |
| Depth in millimetres (mm) | 155,25 mm |
| Energy (usable) | 2,5 kWh |
| Max. discharge power | 40A (3sec) |
| Capacity (usable) | 62,7 Ah |
Product Variants Downloads
Article no: 612033
Article no: 628899
